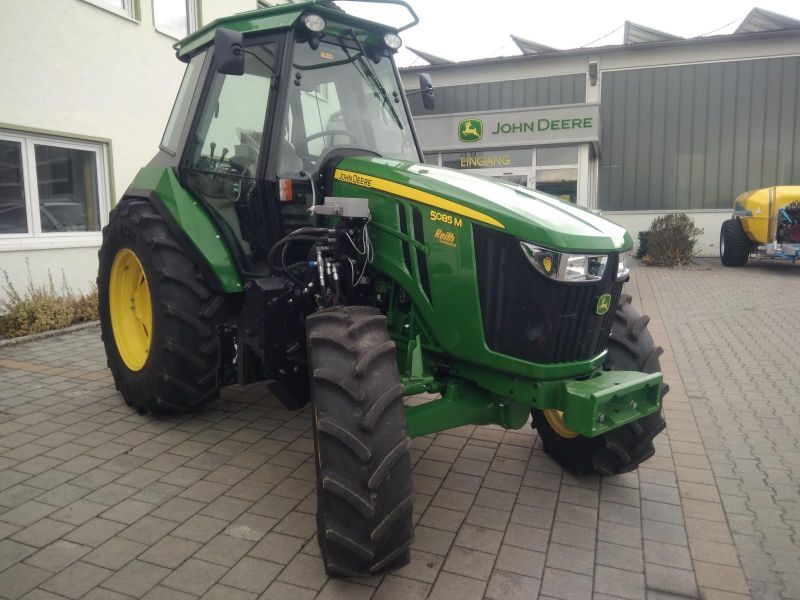

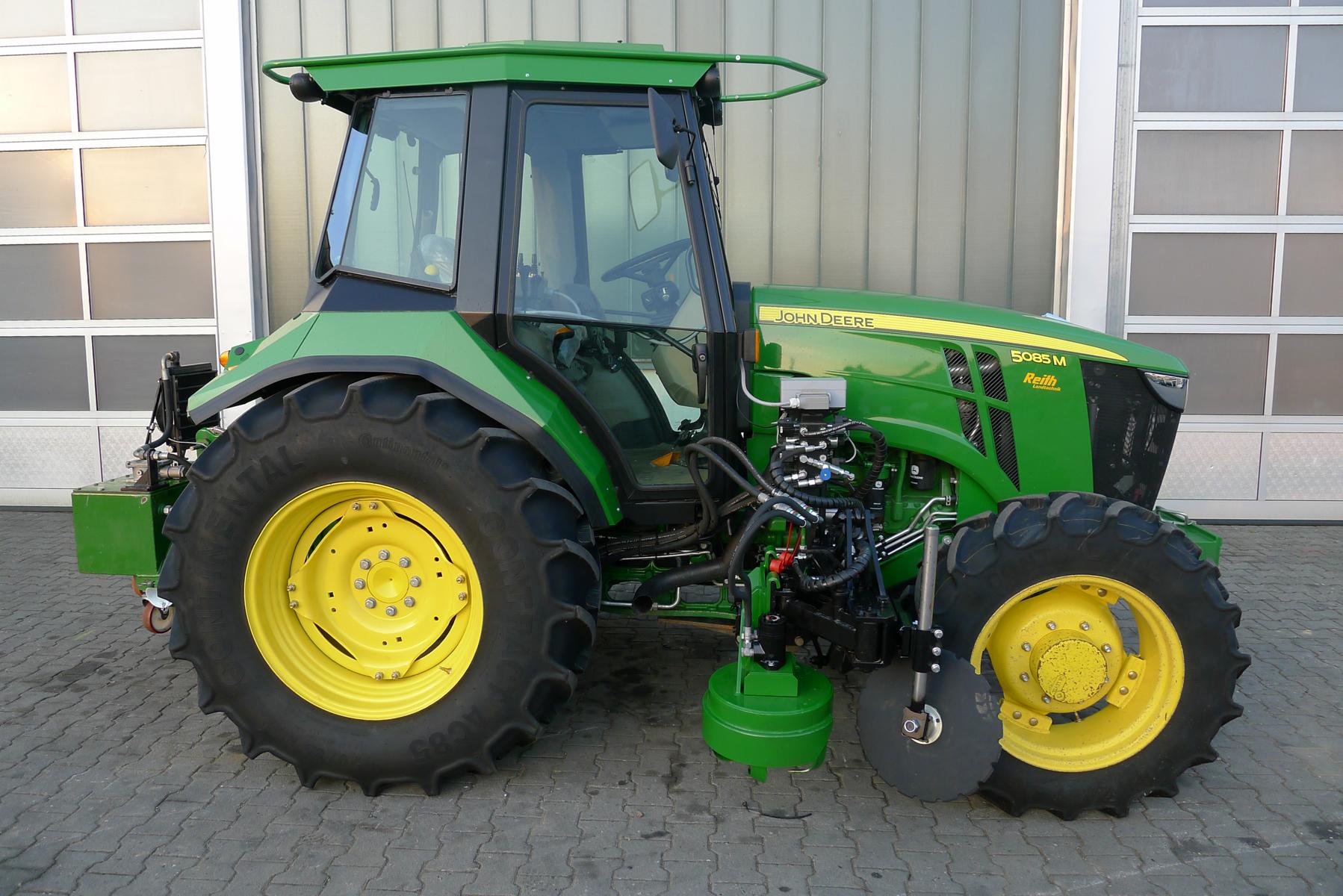

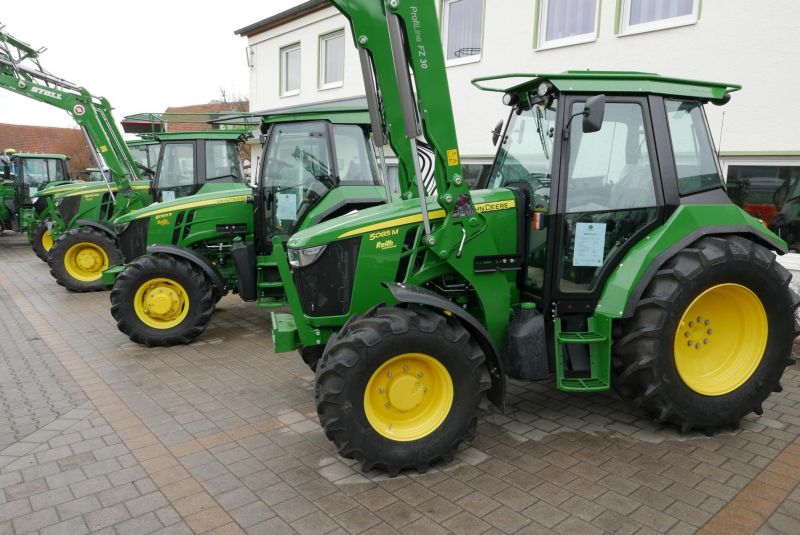

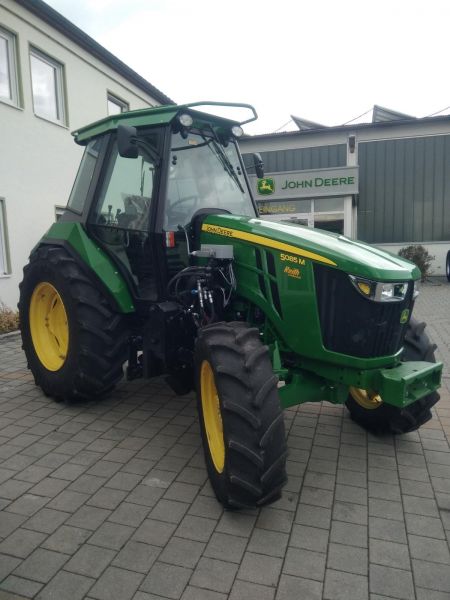

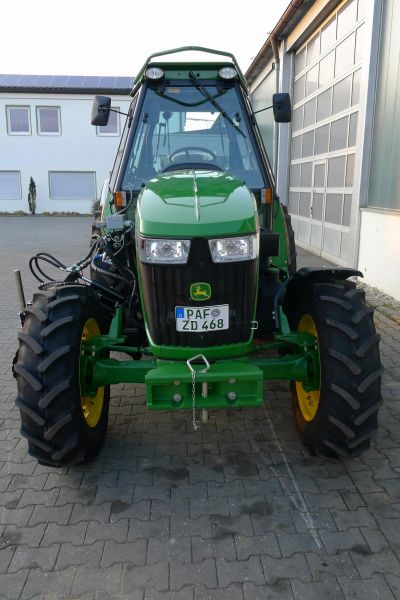

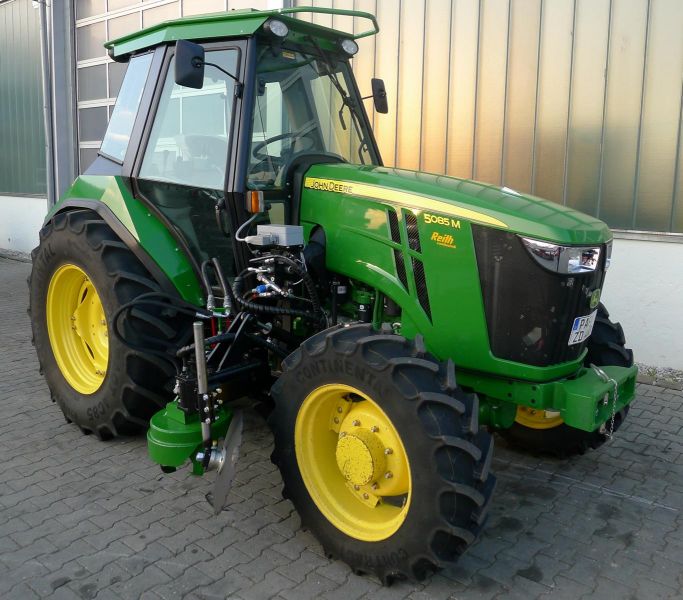

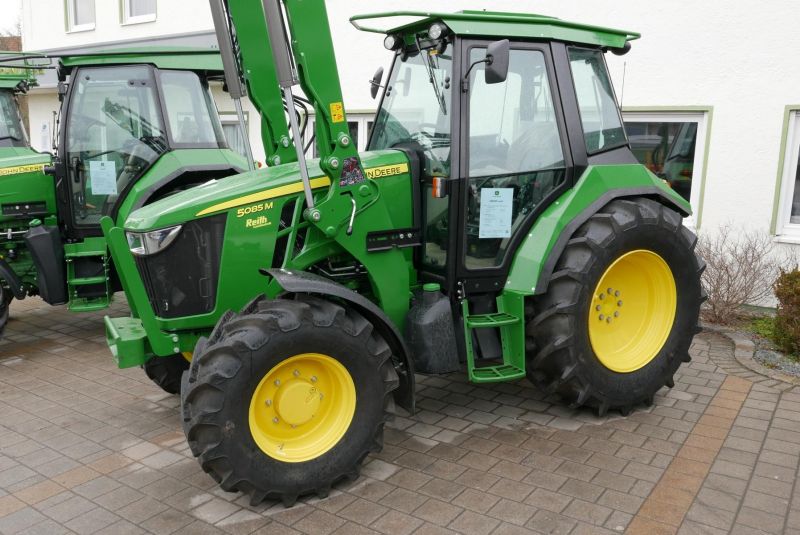

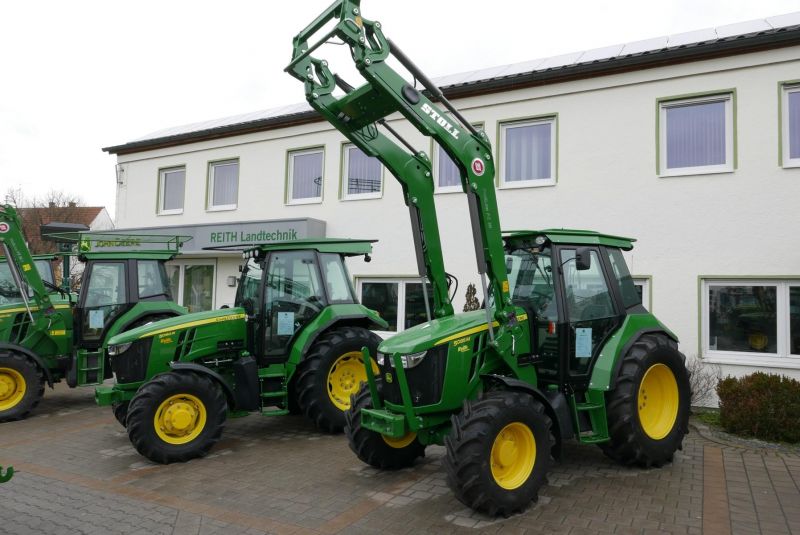

JD hop tractors series 5M

Versions: 5090M - 5100M - 5115M

SERIAL EQUIPMENT:

ENGINE: 4-Cylinder JOHN DEERE Power Tech PWX engine, turbocharger, intercooler, Tier IIIB, 4V CommonRail, rated power 90/100/115 hp, diesel-only technology, displacement 4525 cc, exhaust down, fuel tank 177 ltr.

TRANSMISSION: 32/16 PowrReverser Plus 40 km / h, reverser on the left side of the steering wheel, wet clutch

PTO: 540 / 540E / 1000 electro-hydraulic actuation

HYDRAULICS: OpenCenter with tandem pump 70 l / min. + 24 l / min. mechanical lower link control, 2 DW control units, adjustable lifting struts left and right, lower link with quick coupler, upper link with tenting arm, automatic stabilizing strut, leak oil collecting container, power lift cylinder 70mm



CABIN: Special hop cab, with integrated safety frame, air conditioning and heating, front windscreen with wiper washer, glass roof hatch, vine deflector, 2 pieces H3 double-beam work lights front, 2 pieces H3 double-beam work lights rear, front passenger seat, tool box , Digital Display, Premium Air Suspension Seat, Radio Kit, Automatic Hitch 30mm Bolt,

TIRES: 420 / 85R30 - 320 / 85R24 Mitas

ACCESSORIES: Tires 480 / 70R30 - 375 / 70R20 Electronic Hitch Control EHR
3. DW control unit with floating position
Fronthydraulic
Front PTO
Air brake 2-circuit
2 adjustable H4 headlights
radio
